True 1¼″ Male Camlock × 1¼″ (32mm) Hose Tail (Type E) - GF Polypropylene - CPP®
True 1¼″ Male Camlock × 1¼″ (32mm) Hose Tail (Type E) - GF Polypropylene - CPP®
SKU:CME16T027
Couldn't load pickup availability
Out of stock

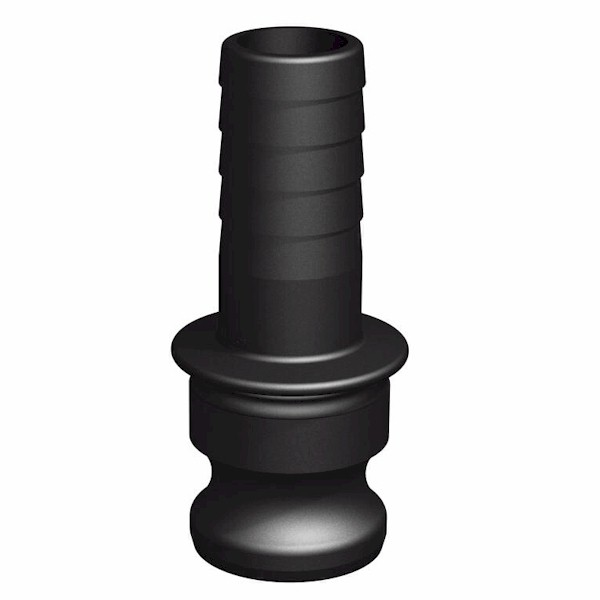

This CPP® Type E (Part E) adaptor connects a hose with a nominal 32mm internal diameter to a matching True 1¼″ female Camlock coupler. It provides a quick connection for liquid-transfer hoses, with a barbed hose tail for use with a suitable hose clamp.
Manufactured from glass-filled polypropylene, the adaptor has a male Camlock profile that fits inside a matching female coupler. The cam arms and sealing gasket are carried by the mating female coupler.
Specifications
- Camlock type: Type E (Part E)
- Camlock connection: True 1¼″ male.
- Hose connection: 1¼″ (32mm) nominal hose internal diameter.
- Thread: None.
- Body material: Glass-filled polypropylene.
- SKU: CME16T027.
Camlock compatibility: Fits matching True 1¼″ female Camlock heads manufactured to EN 14420-7 or US specification A-A-59326.
Choosing the correct size: The 1¼″ (32mm) measurement refers to the nominal hose internal diameter. The Camlock head is True 1¼″; select a matching female Camlock connection. This is the true 1¼″ Camlock profile; check the head dimensions to distinguish it from products with a 1½″ Camlock head and a 1¼″ hose or thread connection.
Pressure ratings — water service
| Temperature | Pressure rating |
|---|---|
| −10°C | 5 bar (approximately 73 psi) |
| 20°C | 6.5 bar (approximately 94 psi) |
| 65°C | 3 bar (approximately 44 psi) |
These ratings apply to CPP® Camlocks in the ½″–2″ size range and are based on water service. They are a guide only; verify suitability by testing under the intended conditions of use and meet applicable health and safety requirements. The complete assembly is limited by its lowest-rated component.
Installation and use
Secure the hose tail with a clamp suitable for the hose and application. Check compatibility of the body, gasket and connected components with the liquid and operating temperature. Support attached hoses and pipework to avoid strain on the fitting, and release system pressure before disconnecting.
