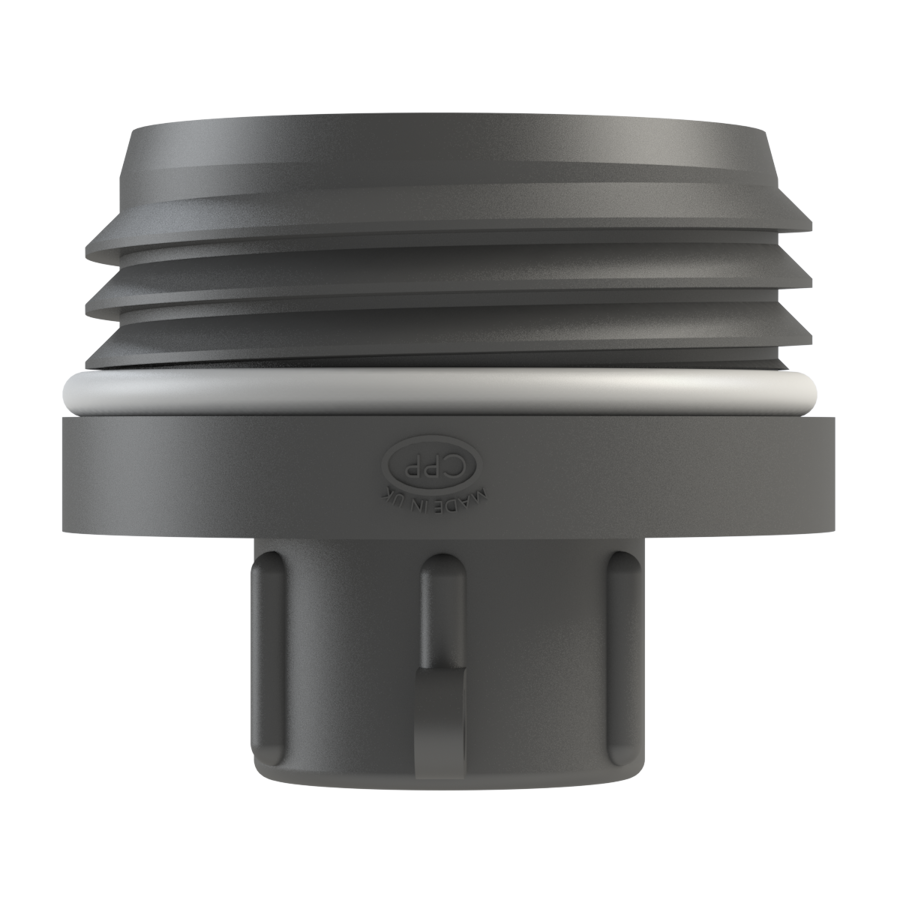

S64X5 Drum Thread × ¾″ BSPP Female – GF Polypropylene – CPP®

CPP® S64X5 drum adaptor for connecting compatible drums and barrels with an S64X5 male drum thread to a ¾″ BSPP female outlet.

Manufactured in black glass-filled polypropylene and supplied with a PP olefin elastomer O-ring.

Connection details

• Drum connection: S64X5 male drum thread
• Drum thread reference: S64X5 thread family based on DIN 6131:1989
• Outlet connection: ¾″ BSPP female (parallel)
• Outlet thread standard: ISO 228-1
• Body material: Black glass-filled polypropylene (GFPP)
• O-ring material: PP olefin elastomer
• Part number: DBMFB64U75B027

Working pressure and testing

Maximum working pressure for drum applications: 1 bar (approximately 15 psi) at 20°C.

Pressure testing: Tested to 60 psi (approximately 4.1 bar).

These pressures apply to the adaptor only. Follow the drum and closure manufacturer’s operating limits; the adaptor rating does not authorise pressurising the drum.

Always confirm thread type, seal compatibility and chemical suitability before use.
