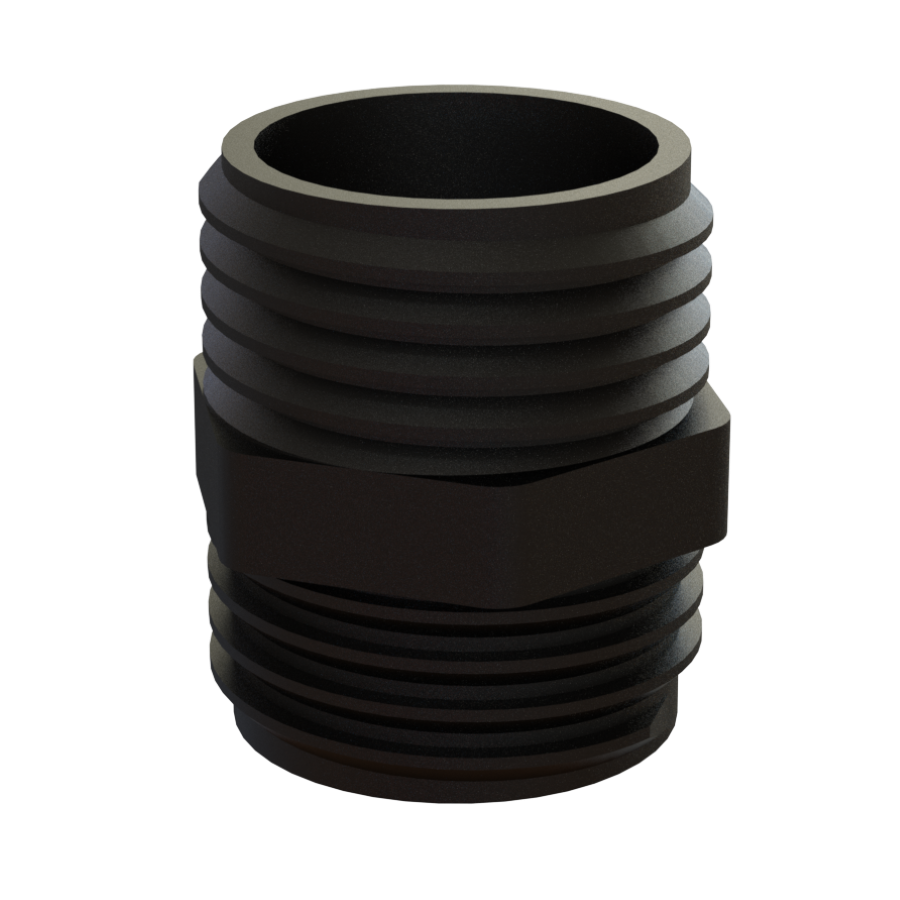

S60X6 Male × S60X6 Male - GF Polypropylene - CPP®

This CPP® double-male adaptor joins two matching S60X6 female connections for IBC liquid-transfer assemblies. Both ends are male; it does not screw directly onto a male IBC outlet.

Connections and materials

• Connection 1: S60X6 male buttress.
• Thread size: Nominal 60mm male outside diameter with 6mm pitch.
• Connection 2: S60X6 Male.
• Body material: Glass-filled polypropylene.
• Product code: HMMUD20UD027.

Thread specification

S60X6 male buttress, manufactured to the applicable thread dimensions and tolerances of BS EN 12713.

Both connections use the specified S60X6 buttress thread; check the gender and sealing face of each mating component.

Working pressure and testing

Maximum working pressure for IBC applications: 1 bar (approximately 15 psi) at 20°C.

Pressure testing: Tested to 60 psi (approximately 4.1 bar).

These pressures apply to the adaptor only. Follow the IBC tank and valve manufacturer’s operating limits; the adaptor rating does not authorise pressurising the IBC.

Installation Notes

1. Check that both receiving fittings have matching S60X6 female threads and suitable seals.
2. Ensure all threads, sealing faces and gaskets are clean, undamaged and correctly seated.
3. Assemble each mating female connection in accordance with its fitting instructions. Support the connected assembly to avoid bending loads.

Avoid overtightening, which can damage the threads, distort the gasket or cause leakage. Release pressure before disconnecting.

Material and application guidance

Check the CPP® chemical resistance guide and Material Application Statement for suitability with your liquid and operating conditions.

Need help choosing the right fitting?

If you’re unsure about your IBC thread or connection, please contact us and we’ll help you select the correct adaptor. A clear photo of the outlet, together with any measurements, will help us identify what you need.
