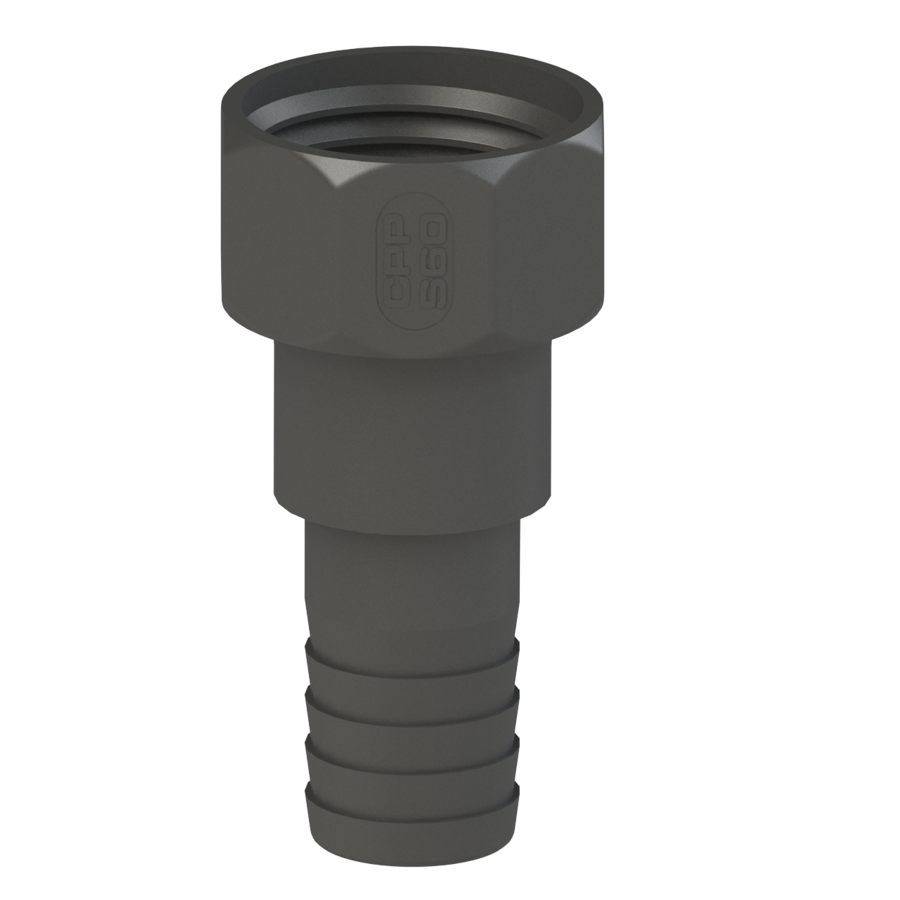

S60X6 Female × 1½″ (38mm) Hose Tail - GF Polypropylene - CPP®

Connect an IBC tank with an S60X6 male outlet to a 1½″ (38mm) hose tail connection. This CPP® adaptor is suitable for dispensing water and other compatible liquids.

IBC compatibility

Fits standard S60X6 male IBC outlets, including SCHÜTZ S60X6 outlets. Suitable for selected WERIT, MAUSER, Mamor and Sotralentz tanks when fitted with a matching S60X6 male outlet and suitable sealing face.

Check the actual outlet before ordering, as connections vary between models and replacement valves.

Connections and materials

• IBC connection: S60X6 female buttress.
• Thread size: Nominal 60mm male outside diameter with 6mm pitch.
• Hose connection: 1½″ (38mm) Hose Tail, for hose with a matching internal diameter.
• Body material: Glass-filled polypropylene.
• Product code: HFUD215T027.

Thread specification

S60X6 buttress, manufactured to the applicable thread dimensions and tolerances of BS EN 12713.

Working pressure and testing

Maximum working pressure for IBC applications: 1 bar (approximately 15 psi) at 20°C.

Pressure testing: Tested to 60 psi (approximately 4.1 bar).

These pressures apply to the adaptor only. Follow the IBC tank and valve manufacturer’s operating limits; the adaptor rating does not authorise pressurising the IBC.

Installation Notes

1. Ensure the IBC outlet thread and sealing face are clean and undamaged, and the correct gasket is seated properly.
2. Hand-tighten the S60X6 female connection until the gasket sits firmly against the IBC valve outlet.
3. Using a suitable wrench or strap wrench, tighten a further 30° minimum to 60° maximum.
4. Fit a hose with the matching internal diameter securely onto the hose tail and fasten with a suitable hose clamp. Support the hose to reduce strain on the adaptor.

Avoid overtightening, which can damage the threads, distort the gasket or cause leakage. Release pressure before disconnecting.

Material and application guidance

Check the CPP® chemical resistance guide and Material Application Statement for suitability with your liquid and operating conditions.

Need help choosing the right fitting?

If you’re unsure about your IBC thread or connection, please contact us and we’ll help you select the correct adaptor. A clear photo of the outlet, together with any measurements, will help us identify what you need.
