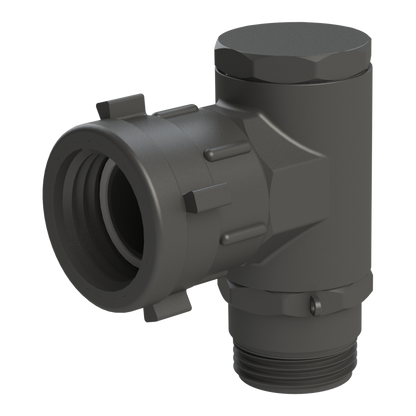

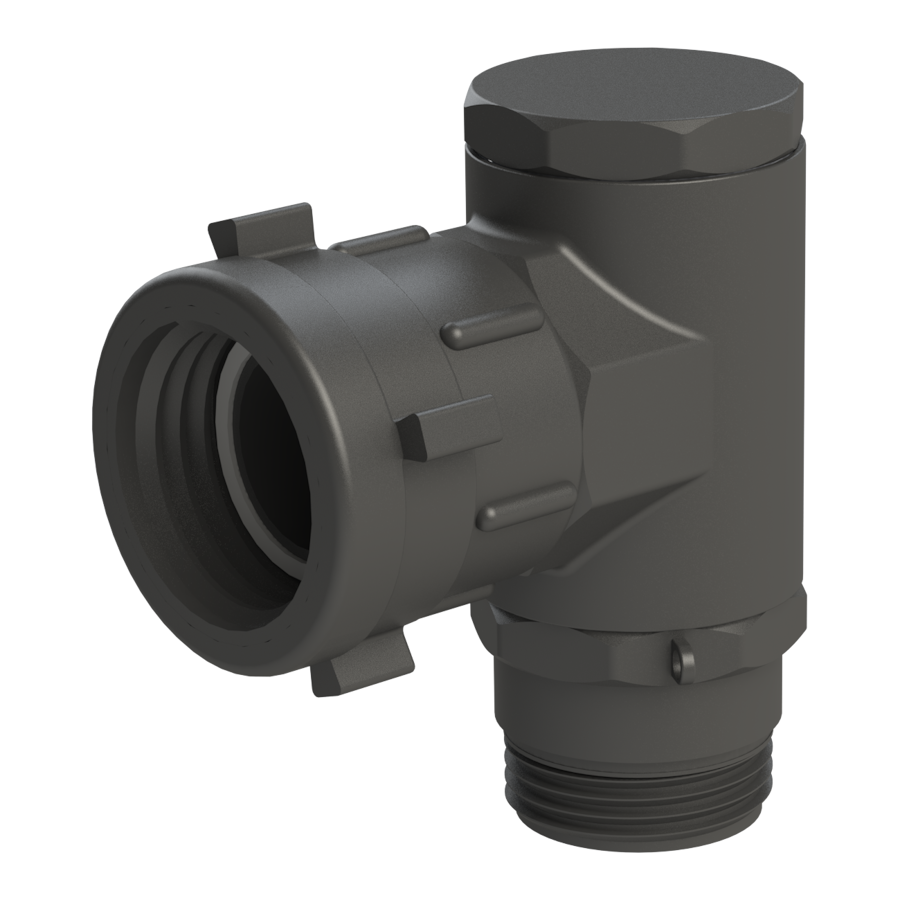

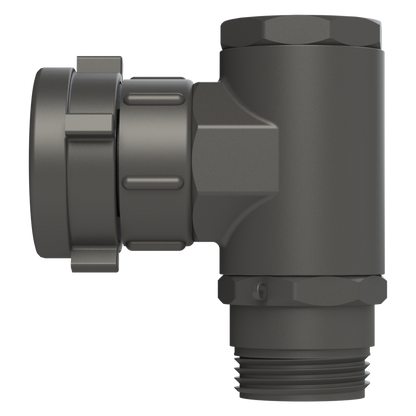

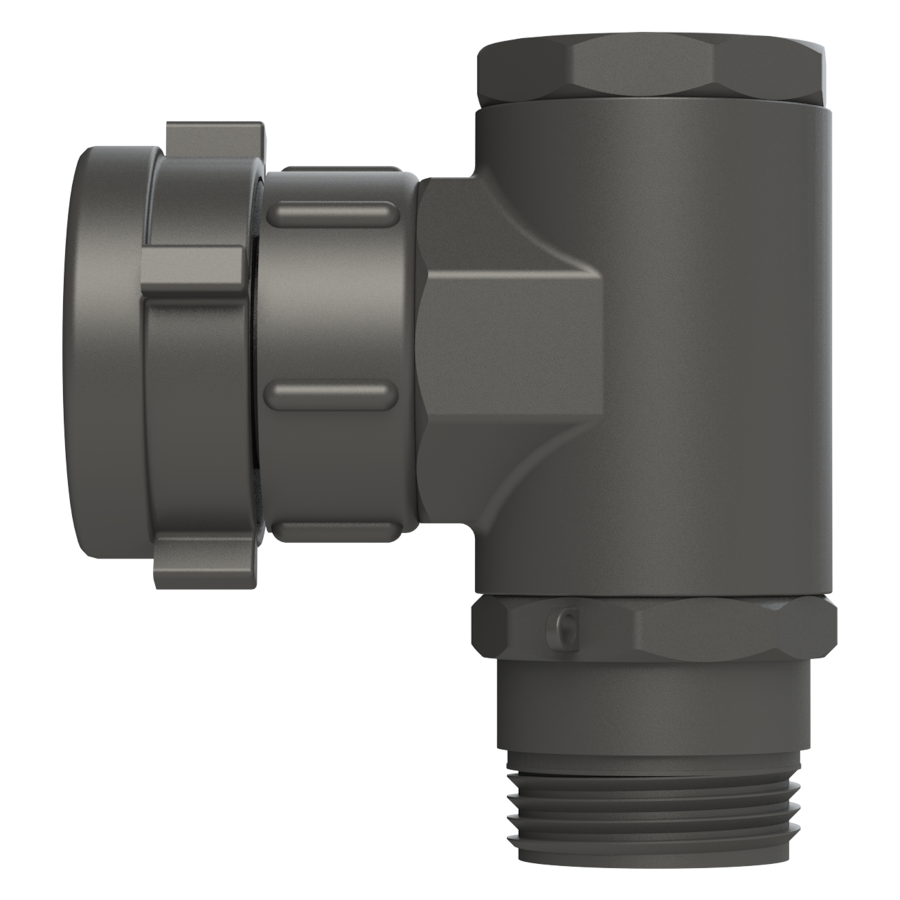

S60X6 Female Swivel × 90° Elbow × S60X6 Male - GF Polypropylene - CPP®

Connect an IBC tank with an S60X6 male outlet to a 90° elbow × S60X6 male connection. This CPP® adaptor is suitable for dispensing water and other compatible liquids.

The swivel nut allows the IBC connection to be tightened without turning the attached hose or pipework.

The 90° elbow changes the outlet direction. Check the available clearance and support connected pipework to reduce load on the IBC valve.

IBC compatibility

Fits standard S60X6 male IBC outlets, including SCHÜTZ S60X6 outlets. Suitable for selected WERIT, MAUSER, Mamor and Sotralentz tanks when fitted with a matching S60X6 male outlet and suitable sealing face.

Check the actual outlet before ordering, as connections vary between models and replacement valves.

Connections and materials

• Body material: Glass-filled polypropylene.
• IBC connection: S60X6 female swivel buttress.
• Thread size: Nominal 60mm male outside diameter with 6mm pitch.
• Connection 2: 90° Elbow × S60X6 Male.

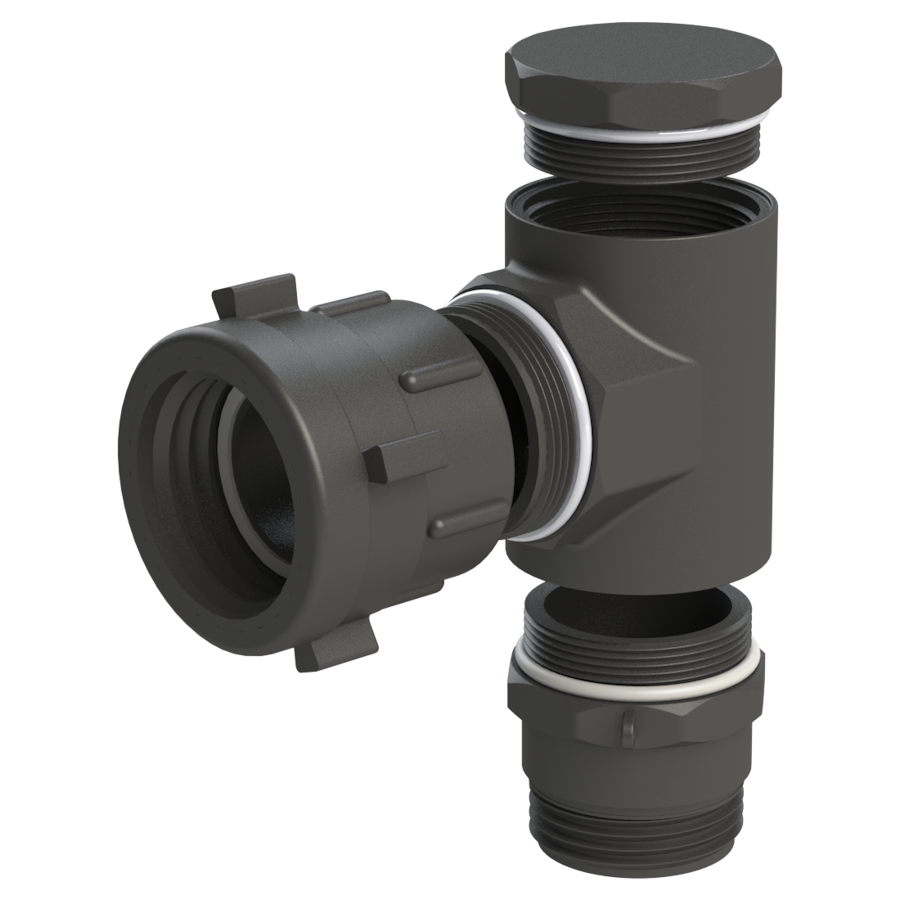

• Supplied: Seals.
• Product code: HMFU60UD9060UD027.

Thread specification

S60X6 buttress, manufactured to the applicable thread dimensions and tolerances of BS EN 12713.

Both connections use the specified S60X6 buttress thread; check the gender and sealing face of each mating component.

Working pressure and testing

Maximum working pressure for IBC applications: 1 bar (approximately 15 psi) at 20°C.

Pressure testing: Tested to 60 psi (approximately 4.1 bar).

These pressures apply to the adaptor only. Follow the IBC tank and valve manufacturer’s operating limits; the adaptor rating does not authorise pressurising the IBC.

Installation Notes

1. Ensure the IBC outlet thread and sealing face are clean and undamaged, and the correct gasket is seated properly.
2. Hand-tighten the S60X6 swivel nut until the gasket sits firmly against the IBC valve outlet.
3. Using a suitable wrench or strap wrench on the nut, tighten a further 30° minimum to 60° maximum.
4. Fit the matching outlet connection using the appropriate sealing arrangement. Support hoses and pipework to reduce strain on the IBC valve.

Avoid overtightening, which can damage the threads, distort the gasket or cause leakage. Release pressure before disconnecting.

Material and application guidance

Check the CPP® chemical resistance guide and Material Application Statement for suitability with your liquid and operating conditions.

Need help choosing the right fitting?

If you’re unsure about your IBC thread or connection, please contact us and we’ll help you select the correct adaptor. A clear photo of the outlet, together with any measurements, will help us identify what you need.
