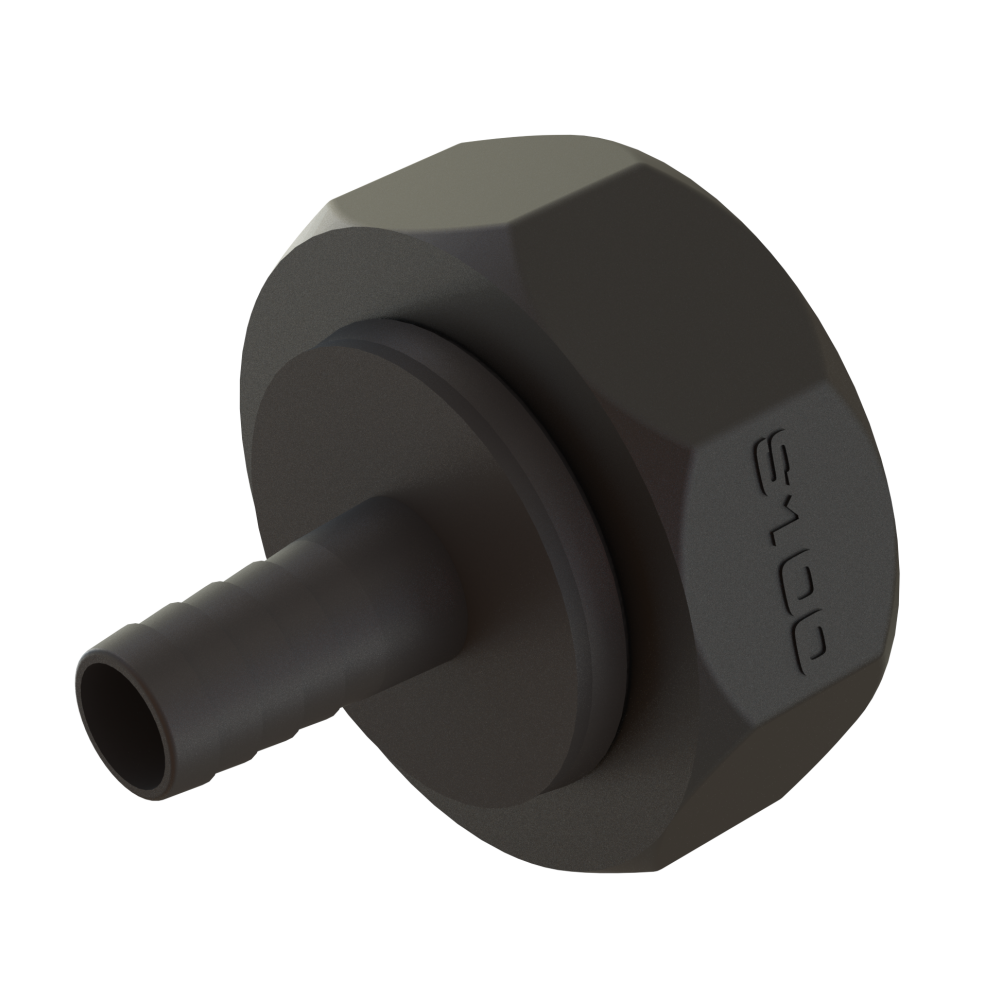

S100X8 Female Swivel × 1″ (25mm) Hose Tail - GF Polypropylene - CPP®

This CPP® IBC adaptor converts an S100X8 male outlet (3″ buttress, DN80) to a 1″ (25mm) Hose Tail connection for compatible dispensing equipment.

Swivelling IBC connection: the S100X8 female nut turns independently during installation, helping you connect the adaptor without rotating the attached hose or pipework.

Connections and materials

• IBC connection: S100X8 female swivel buttress thread (3″, DN80) with supplied gasket seal.
• Outlet connection: 1″ (25mm) Hose Tail.
• Body material: glass-filled polypropylene (GFPP).
• Supplied IBC seal: polypropylene-based olefin elastomer.
• Product code: HFU100U10T027.

Thread identification and compatibility

S100X8 identifies a buttress thread with a nominal 100 mm male thread diameter and an 8 mm pitch. Check the thread on your IBC valve before ordering; this connection is different from S60X6, BSP and NPS threads.

The supplied gasket seals against the mating face of the IBC outlet. Correct fit depends on both the thread and the sealing face.

Hose connection: 1″ (25mm) hose tail. Select a compatible hose of the stated nominal size and secure it using a suitable hose clamp or fastening system for the application.

IBC manufacturer compatibility

Suitable for SCHÜTZ, WERIT, Greif, MAUSER (Mamor), Fustiplast and Sotralentz IBCs when fitted with a matching S100X8 male buttress outlet on a 3″ (DN80) valve and a compatible sealing face.

These manufacturers use different valve and outlet options. Confirm the actual S100X8 thread and sealing face before ordering; the tank brand or DN80 marking alone does not confirm fit. On reconditioned IBCs, check the valve currently installed.

Working pressure and testing

• Working pressure: 1 bar (approximately 15 psi) at 20°C.
• Pressure tested to: 60 psi (approximately 4.1 bar).

The working pressure applies to the adaptor. Follow the limits of the IBC tank, valve and connected equipment; this rating does not authorise pressurising an IBC tank.

Installation and use

Check that the outlet thread and sealing face are clean and undamaged, and that the gasket is correctly seated. Align the adaptor carefully to avoid cross-threading. Support attached hoses and pipework to reduce strain on the IBC valve, and release pressure before disconnecting.

Material and chemical suitability

Check the suitability of the fitting and seal for your liquid and operating conditions. Refer to the CPP® chemical resistance guide and Material Application Statement.

Unsure about your thread or connection? Please contact us and we’ll help you select the correct adaptor. A clear photograph of the outlet, together with any measurements, will help us identify what you need.
