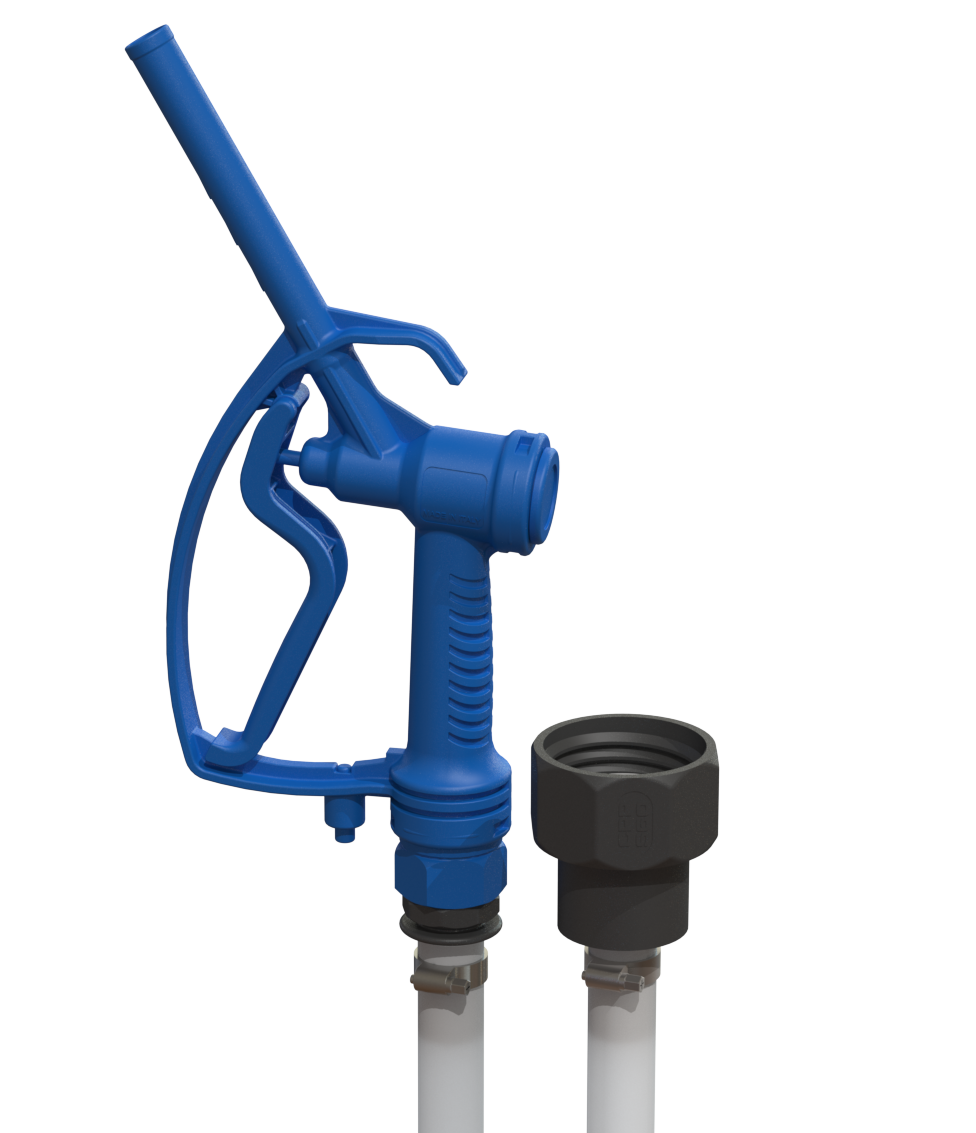

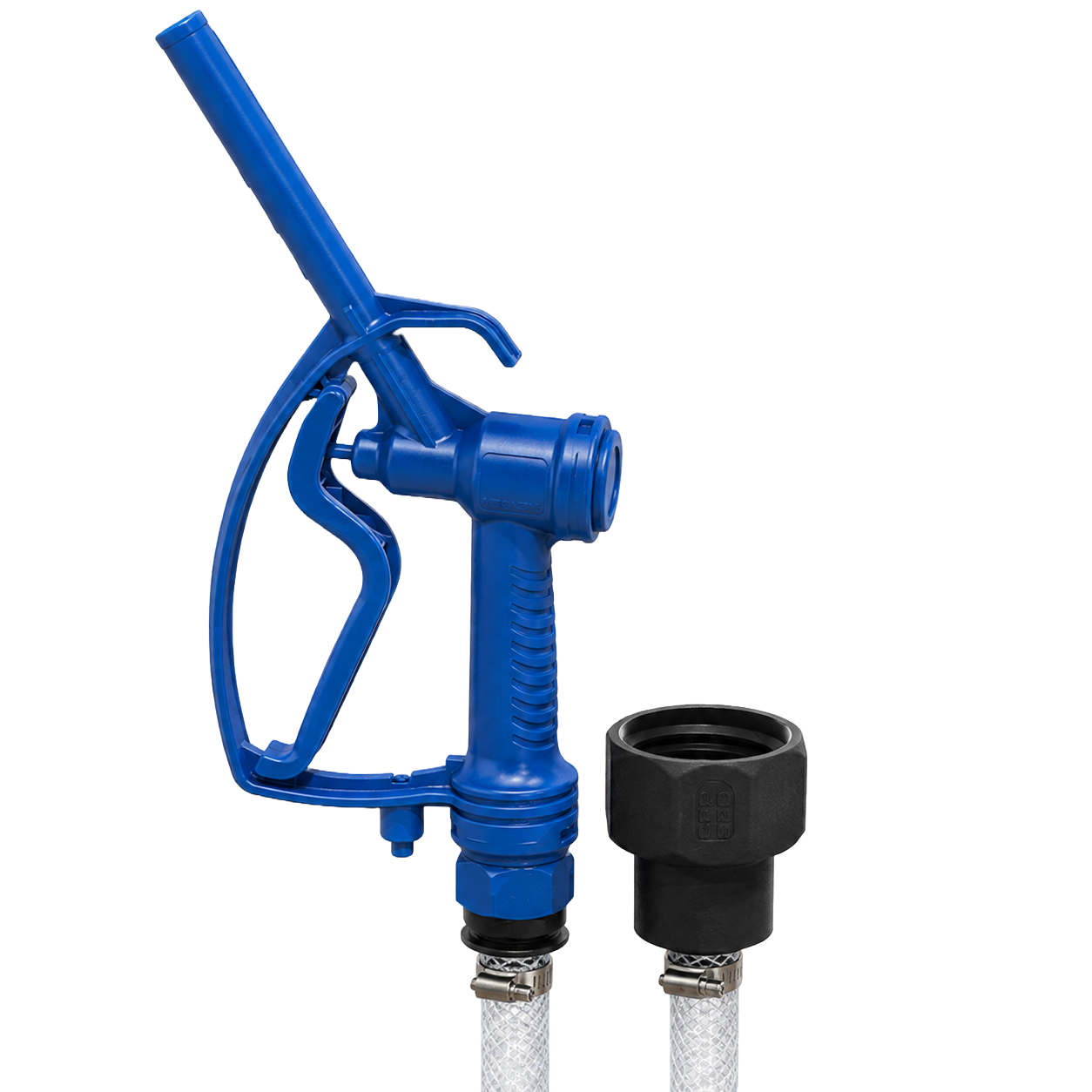

¾'' PVC hose kit – 19mm trigger nozzle X S60X6 Fe. coupler 6m

¾" Clear Braided PVC Hose Kit – 19 mm Trigger Nozzle × S60×6 Female IBC Coupler – 6 m

Part No: HK075PV619N60UD027

Specification

• Hose size: ¾" / 19 mm
• Hose type: Clear braided PVC
• Total length: 6 m / approx. 19.7 ft
• Nozzle: 19 mm trigger nozzle
• Nozzle outlet: 19 mm
• Nozzle body: Glass-filled Nylon PA6
• Nozzle seal: Viton
• Nozzle spring: 316 stainless steel
• Hose clips: Stainless steel
• IBC connection: S60×6 female coupler / swivel nut with hose tail
• IBC seal: PP-based elastomer seal
• Application: AdBlue / DEF dispensing
• Max pressure: 5 bar / 0.5 MPa / 72.5 psi
• Max temperature: 50 °C / 122 °F
• Max flow: 90 L/min / 23.8 US gal/min

Product description

A ¾" clear braided PVC hose kit designed for dispensing AdBlue / DEF from standard IBC containers. The kit is supplied with a 19 mm trigger nozzle, making it suitable for AdBlue applications where a smaller outlet nozzle is required for controlled filling.

The trigger nozzle has a glass-filled Nylon PA6 body, Viton seal and 316 stainless steel spring. The clear braided PVC hose is secured with stainless steel hose clips.

The IBC end is fitted with an S60×6 female IBC coupler / swivel nut with hose tail, complete with a PP-based elastomer seal for a secure connection to common IBC outlet valves.

Designed for clean, controlled transfer of AdBlue / DEF and other compatible liquids from IBC containers.
