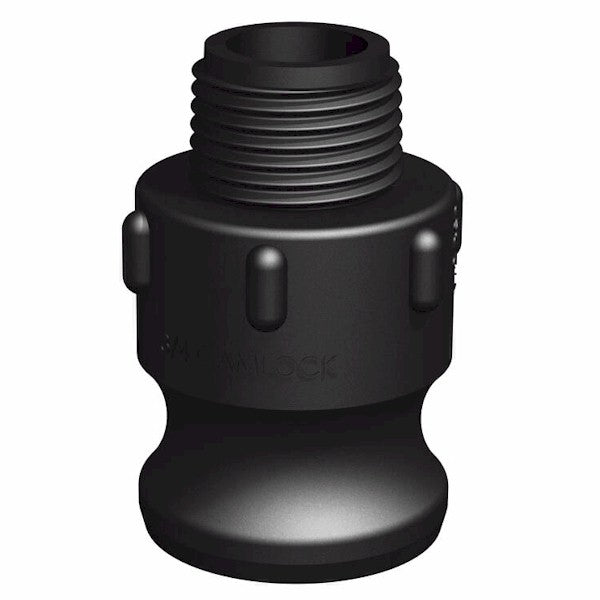

¾″ Male Camlock × ½″ NPT Male (Type F) - GF Polypropylene - CPP®

¾″ Male Camlock × ½″ NPT Male (Type F) - GF Polypropylene - CPP®

CMF05N027

$2.88 USD
$0.00 USD $2.88 USD
Sale Awaiting stock
Shipping calculated at checkout.

In stock

This CPP® Type F (Part F) adaptor connects a matching ¾″ female Camlock coupler to equipment or pipework through its ½″ NPT male thread. It allows the Camlock joint to be connected and disconnected while the threaded end remains installed.

Manufactured from glass-filled polypropylene, the adaptor has a male Camlock profile that fits inside a matching female coupler. The cam arms and sealing gasket are carried by the mating female coupler.

Specifications

  • Camlock type: Type F (Part F)
  • Camlock connection: ¾″ male.
  • Thread: ½″ NPT male.
  • Thread standard: ASME B1.20.1.
  • Thread form: Tapered external thread.
  • Body material: Glass-filled polypropylene.
  • SKU: CMF05N027.

Camlock compatibility: Fits matching ¾″ female Camlock heads manufactured to EN 14420-7 or US specification A-A-59326.

Choosing the correct size: The ½″ measurement refers to the nominal pipe thread size. The Camlock head is ¾″; check both connections when selecting the fitting.

Thread specification

NPT means National Pipe Taper. This product has a ½″ tapered male thread to ASME B1.20.1. Select a matching NPT connection and a sealing method suitable for plastic fittings. NPT and BSP threads are different standards and must be selected accordingly.

Pressure ratings — water service

Temperature Pressure rating
−10°C 5 bar (approximately 73 psi)
20°C 6.5 bar (approximately 94 psi)
65°C 3 bar (approximately 44 psi)

These ratings apply to CPP® Camlocks in the ½″–2″ size range and are based on water service. They are a guide only; verify suitability by testing under the intended conditions of use and meet applicable health and safety requirements. The complete assembly is limited by its lowest-rated component.

Installation and use

Use a suitable mating thread and sealing arrangement; avoid overtightening plastic threads. Check compatibility of the body, gasket and connected components with the liquid and operating temperature. Support attached hoses and pipework to avoid strain on the fitting, and release system pressure before disconnecting.
