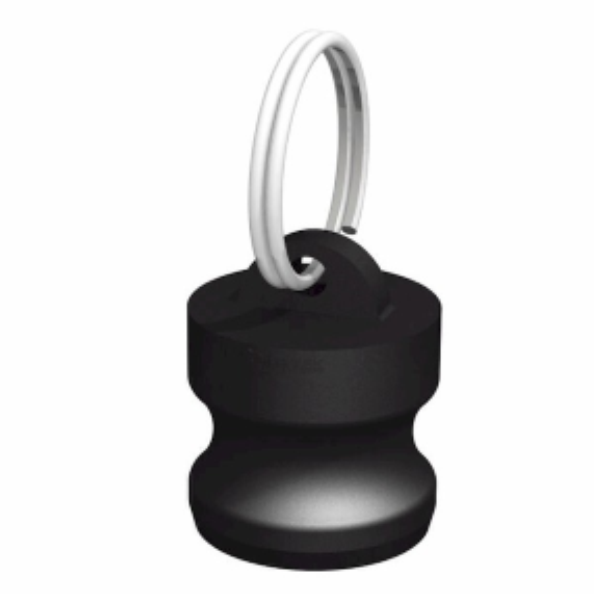

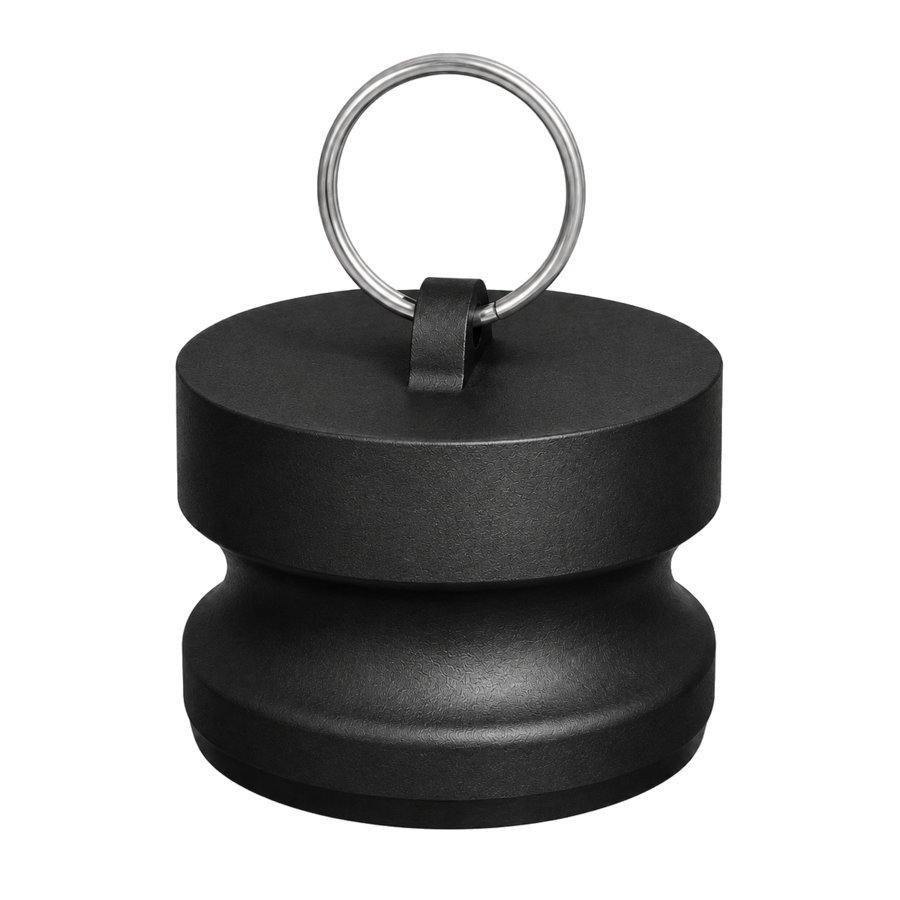

3″ Male Camlock Dust Plug (Type DP) - GF Polypropylene - CPP®

This CPP® Type DP (Part DP) dust plug fits a matching 3″ female Camlock coupler. It covers the disconnected connection to help keep out dust and debris during storage or handling.

Manufactured from glass-filled polypropylene, the plug has a male Camlock profile that fits inside a matching female coupler. The cam arms and sealing gasket are carried by the mating female coupler.

Specifications

• Camlock type: Type DP (Part DP)
• Camlock connection: 3″ male.
• Function: Dust plug.
• Thread: None.
• Body material: Glass-filled polypropylene.
• SKU: CMP30P027.

Camlock compatibility: Fits matching 3″ female Camlock heads manufactured to EN 14420-7 or US specification A-A-59326.

Choosing the correct size: Select by the 3″ Camlock head size and check the mating dimensions in the size chart.

Use and handling

Use for dust protection on a depressurised connection. A dust cap or dust plug should not be used as a pressure-retaining closure. Release system pressure before removing it and check that the mating connection is clean and undamaged.

Technical guides

• Check your connection size: CPP® Camlock size chart
• Check material suitability: CPP® chemical resistance guide
• Read the CPP® Material Application Statement
