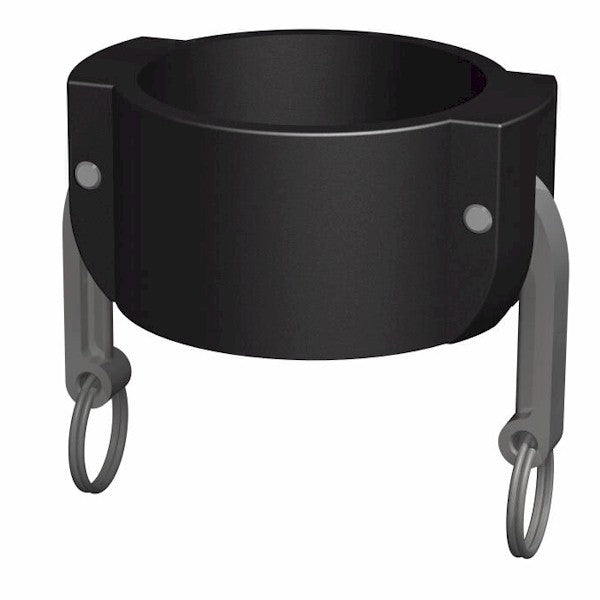

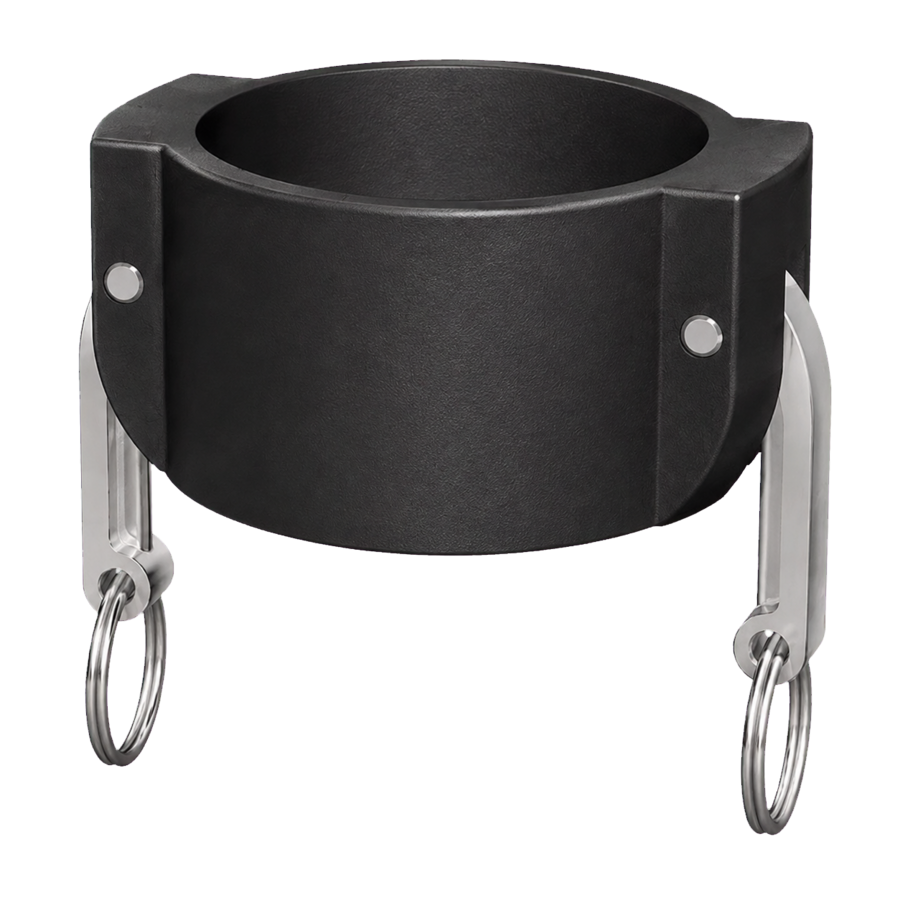

This CPP® Type DC (Part DC) dust cap fits a matching 3″ male Camlock adaptor. It covers the disconnected connection to help keep out dust and debris during storage or handling.
Manufactured from glass-filled polypropylene, the cap includes 304 stainless steel cam arms, rings and pins, together with a polypropylene-based elastomer sealing gasket. Closing both cam arms secures the mating adaptor against the gasket.
Specifications
Camlock type: Type DC (Part DC)
Camlock connection: 3″ female.
Function: Dust cap.
Thread: None.
Body material: Glass-filled polypropylene.
Arms, rings and pins: 304 stainless steel.
Camlock gasket: Polypropylene-based elastomer.
SKU: CFH30C027.
Camlock compatibility: Fits matching 3″ male Camlock heads manufactured to EN 14420-7 or US specification A-A-59326.
Choosing the correct size: Select by the 3″ Camlock head size and check the mating dimensions in the size chart.
Use and handling
Use for dust protection on a depressurised connection. A dust cap or dust plug should not be used as a pressure-retaining closure. Release system pressure before removing it and check that the mating connection is clean and undamaged.
