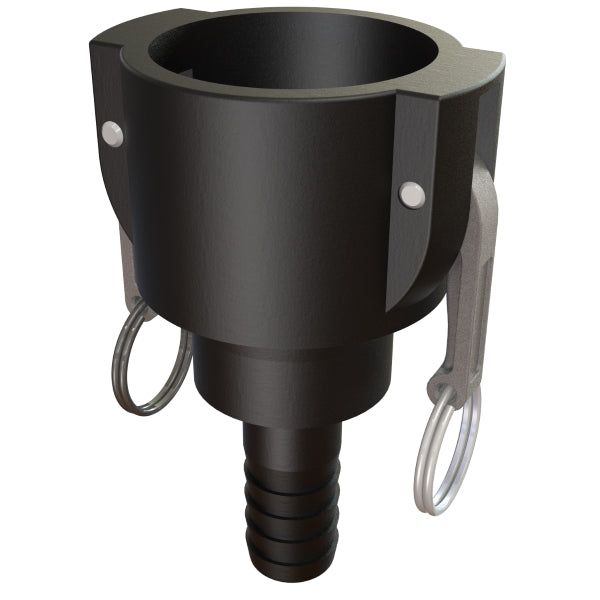

2″ Female Camlock Swivel × 1″ (25mm) Hose Tail (Type SC) - GF Polypropylene - CPP®

This CPP® Type SC (Part SC) swivel coupling connects a matching 2″ male Camlock adaptor to a hose with a nominal 25mm internal diameter. Its swivel construction is an alternative to a fixed-body Camlock coupling for liquid-transfer hose and pipework connections.

Useful where space is restricted: The swivel design helps position the connected hose or fitting where clearance around an IBC outlet is limited.

The body is manufactured from glass-filled polypropylene and the gasket is a polypropylene-based olefin elastomer. The female Camlock head uses cam arms to secure the matching male adaptor against the gasket.

Specifications

• Camlock connection: 2″ female, swivel coupling.
• Type: Type SC (Part SC).
• Hose connection: 1″ (25mm) Hose Tail.
• Thread: None.
• Body material: Glass-filled polypropylene.
• Gasket material: Polypropylene-based olefin elastomer.
• Working pressure: 60 psi (approximately 4.1 bar) at 20°C.
• SKU: CFSC20C10T027.

Camlock compatibility: Fits matching 2″ male Camlock heads manufactured to EN 14420-7 or US specification A-A-59326.

Choosing the correct size: The Camlock head is 2″. The 1″ measurement refers to the hose connection; use the listed 25mm nominal hose internal diameter. Check both ends before ordering.

Pressure and installation

The swivel assembly has a working pressure of 60 psi at 20°C. Check suitability with CPP® for other operating temperatures. The complete installation is limited by its lowest-rated component.

Secure the hose tail with a clamp suitable for the hose and application. Check compatibility of the body and gasket with the liquid and operating conditions. Support attached hoses and pipework to avoid strain, and depressurise the system before disconnecting the assembly.
