2″ Female Camlock × S60×6 Male Buttress (Type B) - GF Polypropylene - CPP®

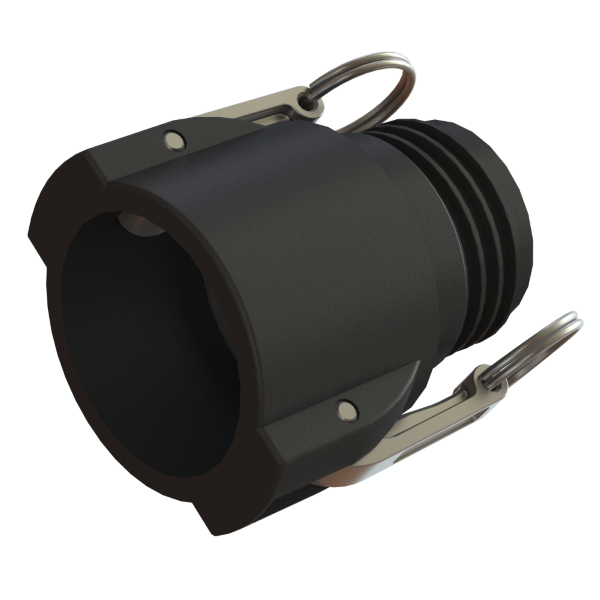

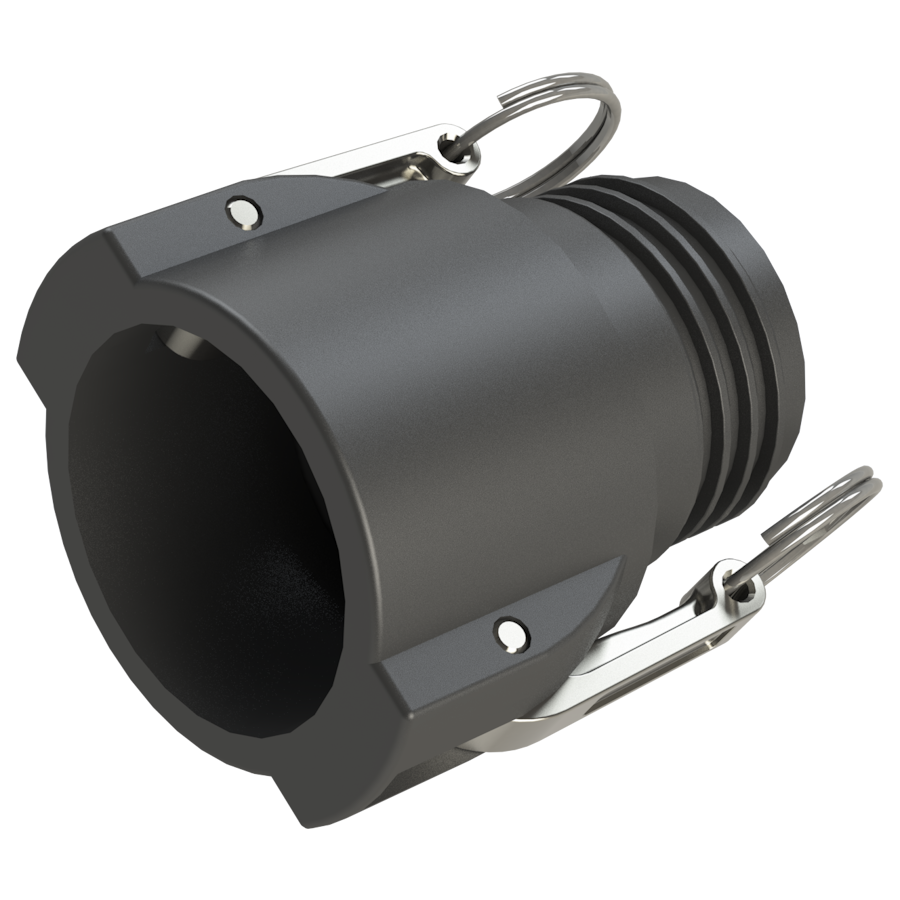

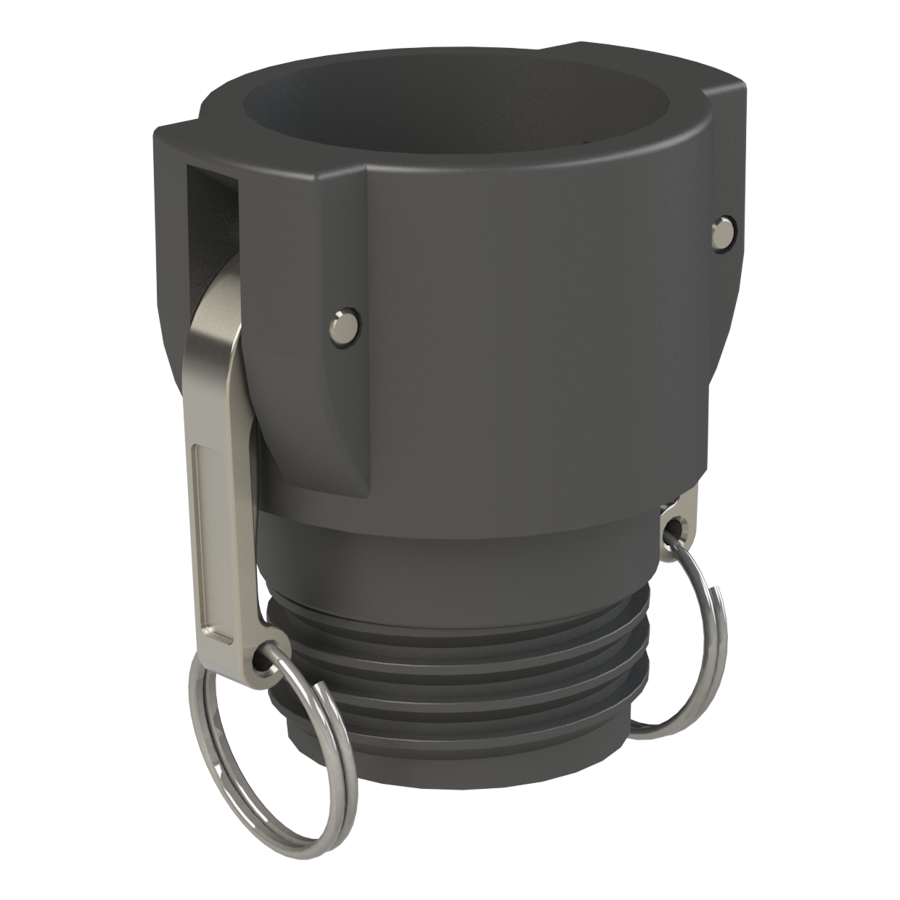

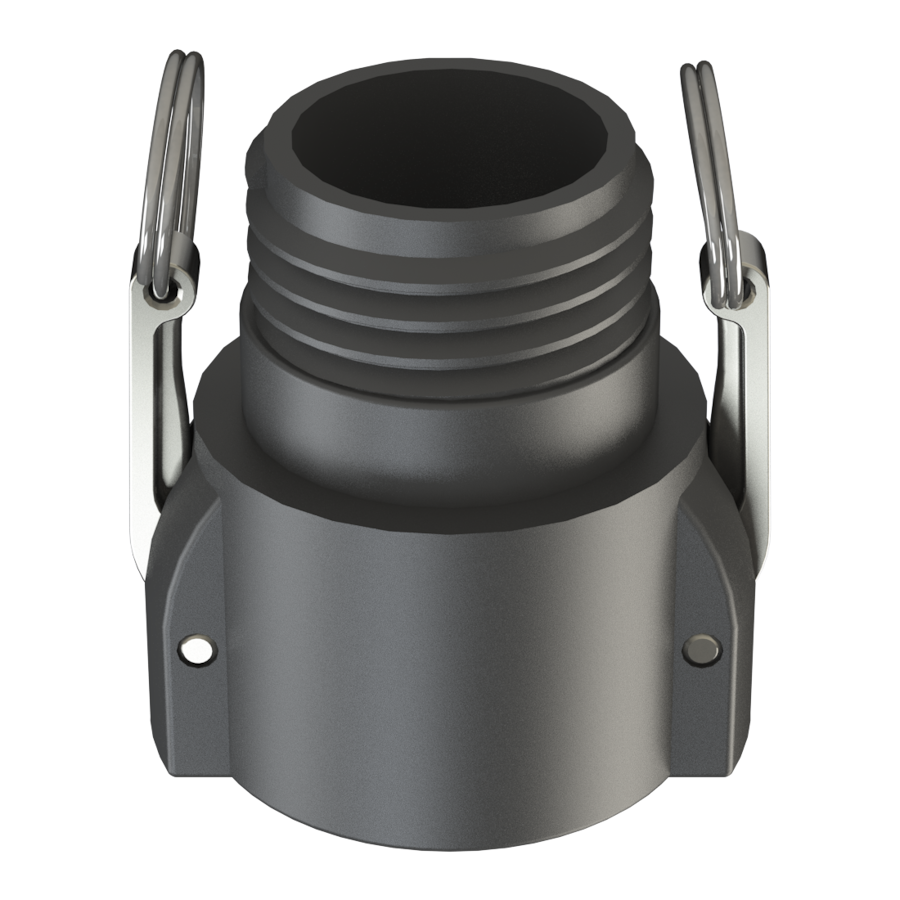

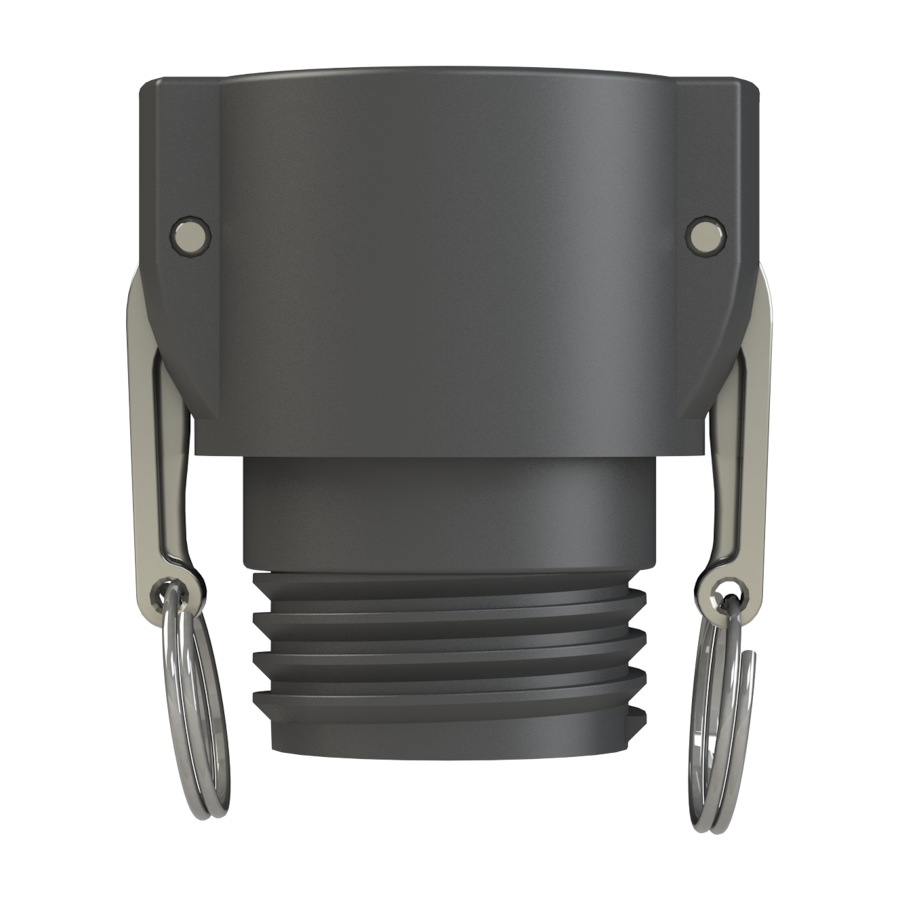

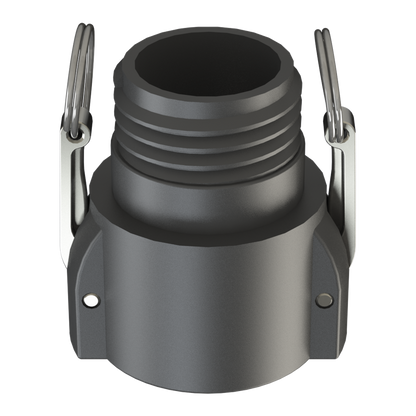

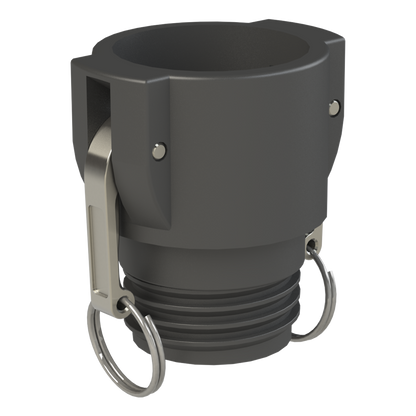

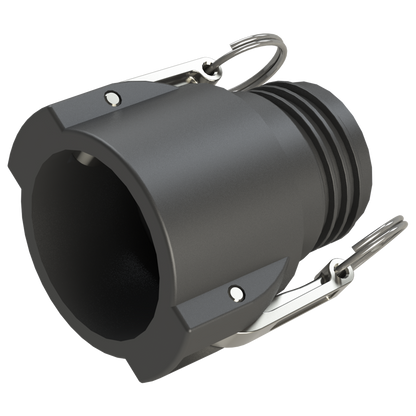

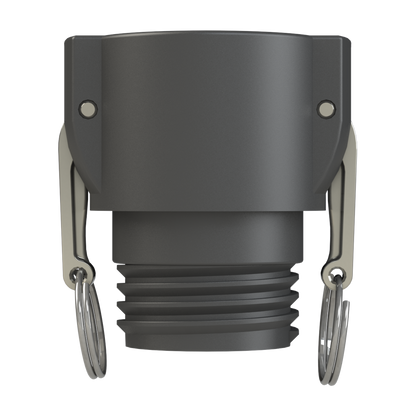

This CPP® Type B (Part B) coupling connects a 2″ Female Camlock to a S60×6 Male Buttress.

Converts a 2″ male Camlock connection to an S60×6 male buttress outlet, allowing a matching S60×6 female adaptor or accessory to be connected.

Connections and materials

• Camlock connection: 2″ Female Camlock.
• Other connection: S60×6 Male Buttress.
• Body: black glass-filled polypropylene (GFPP).
• Cam arms, rings and pins: 304 stainless steel.
• Camlock gasket: polypropylene-based olefin elastomer.
• Product code: CFB20UD027.

Connection specification and fit

S60×6 male buttress thread: nominal 60mm diameter with 6mm pitch. Connect to a matching S60×6 female fitting with a suitable seal. S60×6 is distinct from BSPT, BSPP and NPT.

Camlock compatibility: Fits matching 2″ male Camlock heads manufactured to EN 14420-7 or US specification A-A-59326. Check the mating dimensions using the CPP® size chart.

The gasket in this female coupler seals against the matching male Camlock head.

Working pressure — water service

These guide ratings are based on water service. The complete assembly is limited by its lowest-rated component. Verify suitability under the intended operating conditions, including the liquid and temperature.

Installation and use

Check both connection sizes before ordering. Confirm the compatibility of the body, seals and connected components with the liquid and temperature. Support hoses and pipework to reduce strain on the fitting, and release pressure before disconnecting.

Size, chemical compatibility and material guidance

• CPP® Camlock size chart
• CPP® chemical resistance guide
• CPP® Material Application Statement
