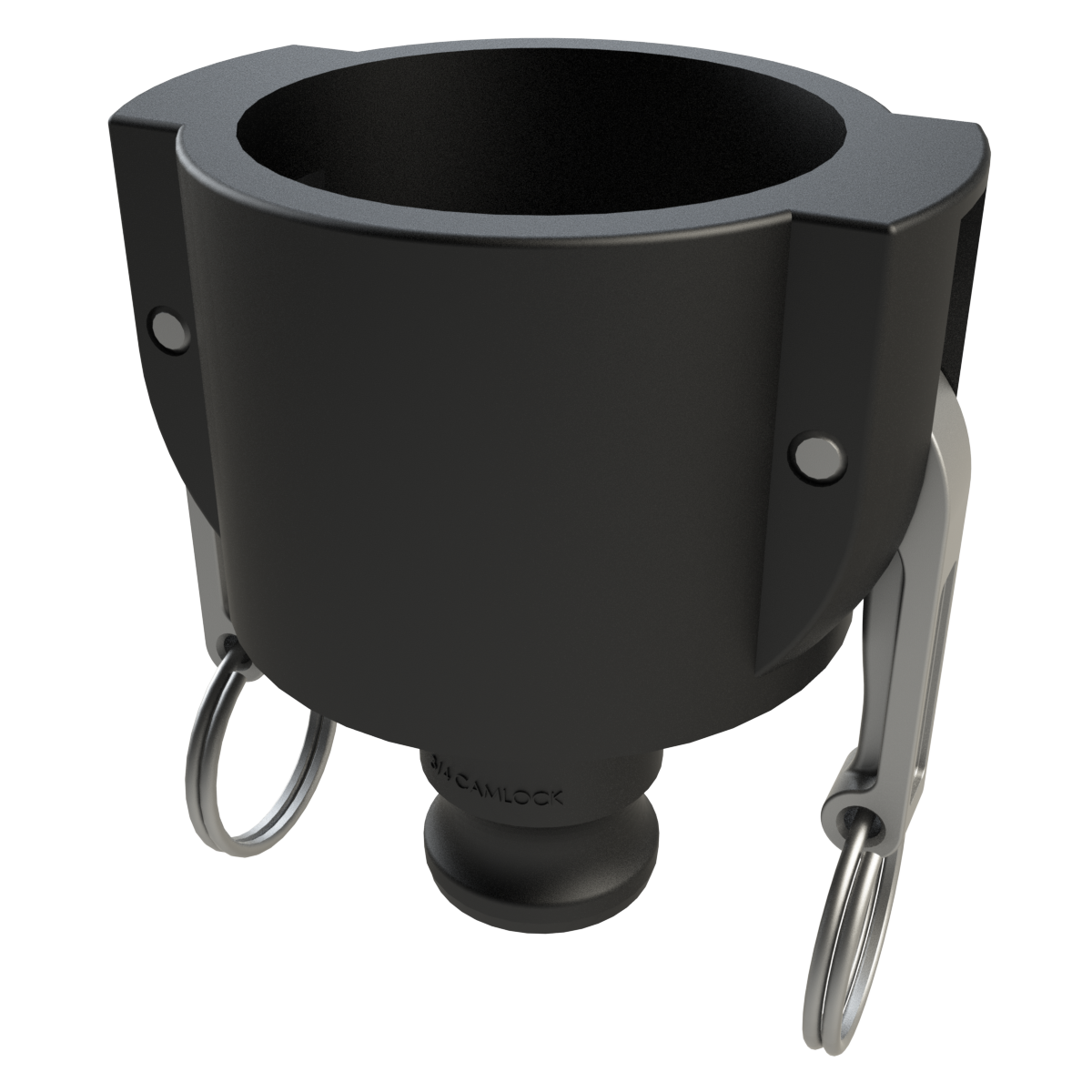

2″ Female Camlock × ¾″ Male Camlock Reducer - GF Polypropylene - CPP®

This CPP® Camlock reducer connects a 2″ Female Camlock to a ¾″ Male Camlock. Listed in CPP’s Type B (Part B) range, this version has a male Camlock outlet.

Changes from a 2″ male Camlock connection to a ¾″ female Camlock connection, allowing different-size Camlock hose assemblies or fittings to be joined.

Connections and materials

• Camlock connection: 2″ Female Camlock.
• Other connection: ¾″ Male Camlock.
• Body: black glass-filled polypropylene (GFPP).
• Cam arms, rings and pins: 304 stainless steel.
• Camlock gasket: polypropylene-based olefin elastomer.
• Product code: CFB20075C027.

Connection specification and fit

The two Camlock ends have different nominal sizes. Match each end separately: the female end accepts a male Camlock head and the male end fits a female Camlock coupler.

Camlock compatibility: The 2″ female end fits matching 2″ male Camlock heads; the ¾″ male end fits matching ¾″ female Camlock heads manufactured to EN 14420-7 or US specification A-A-59326. Check the mating dimensions using the CPP® size chart.

The gasket in this female coupler seals against the matching male Camlock head.

Working pressure — water service

These guide ratings are based on water service. The complete assembly is limited by its lowest-rated component. Verify suitability under the intended operating conditions, including the liquid and temperature.

Installation and use

Check both connection sizes before ordering. Confirm the compatibility of the body, seals and connected components with the liquid and temperature. Support hoses and pipework to reduce strain on the fitting, and release pressure before disconnecting.

Size, chemical compatibility and material guidance

• CPP® Camlock size chart
• CPP® chemical resistance guide
• CPP® Material Application Statement
