NPT (National Pipe Taper): tapered external thread to ASME B1.20.1. Use a matching NPT female connection and suitable thread sealant. BSPT and BSPP are different thread standards and should not be substituted for NPT.

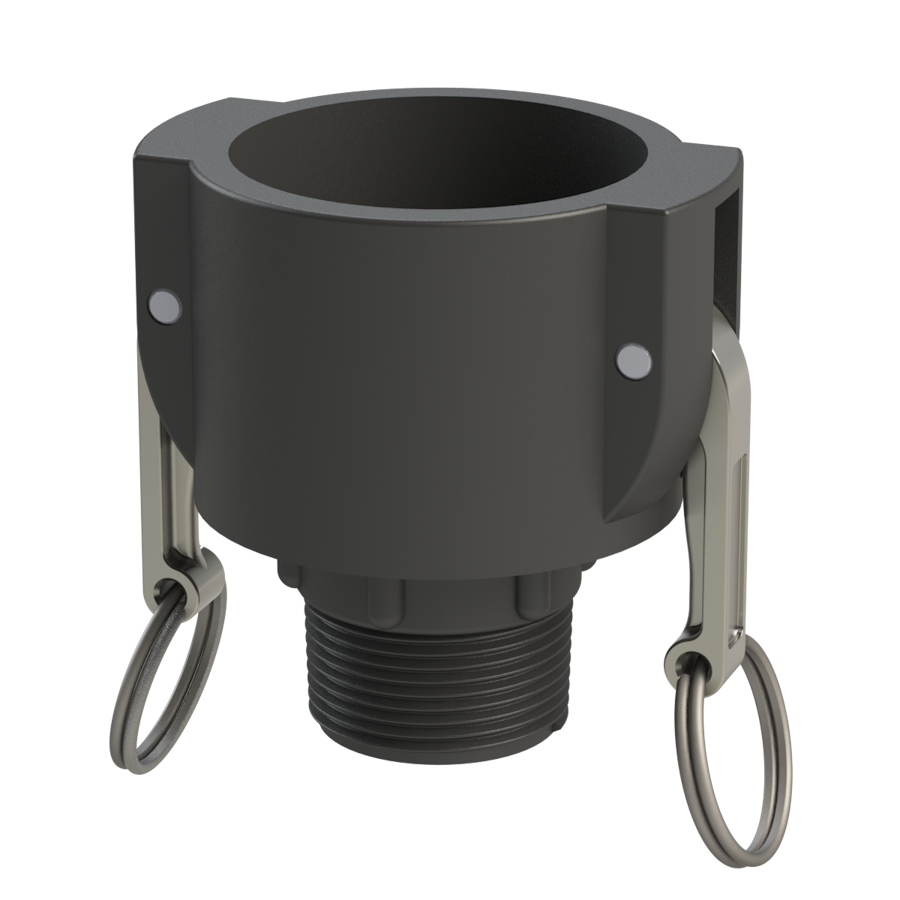

Camlock compatibility: Fits matching 2″ male Camlock heads manufactured to EN 14420-7 or US specification A-A-59326. Check the mating dimensions using the CPP® size chart.
The gasket in this female coupler seals against the matching male Camlock head.
Working pressure — water service
Temperature
Working pressure
−10°C
5 bar / approx. 73 psi
20°C
6.5 bar / approx. 94 psi
65°C
3 bar / approx. 44 psi
These guide ratings are based on water service. The complete assembly is limited by its lowest-rated component. Verify suitability under the intended operating conditions, including the liquid and temperature.
Installation and use
Check both connection sizes before ordering. Confirm the compatibility of the body, seals and connected components with the liquid and temperature. Support hoses and pipework to reduce strain on the fitting, and release pressure before disconnecting.
Size, chemical compatibility and material guidance
Part-number orderingUse the CPP® SKU for fast repeat purchasing.
UK manufacturerSpecialist polymer fluid-transfer fittings.
Technical supportHelp with threads, materials and compatibility.
Global supplyB2B supply for industrial customers and distributors.
TECHNICAL RESOURCES
Check the connection before you order
Use the CPP technical guides for dimensions, material guidance and connection identification. If you are unsure which fitting you need, send us the application details and we can help identify it.
