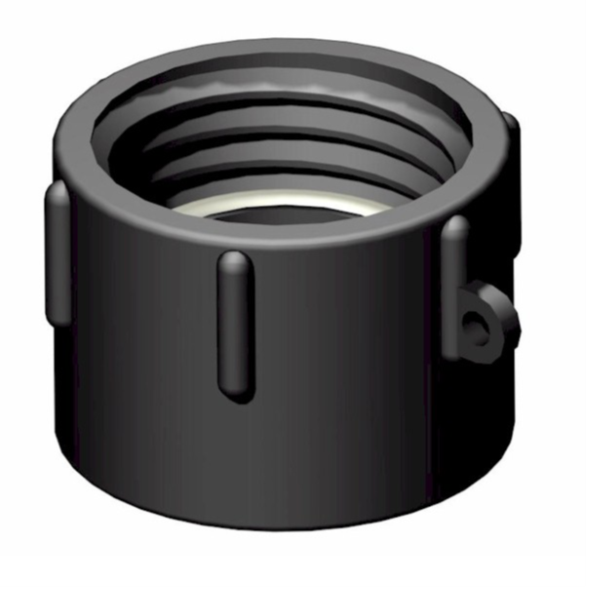

S60X6 Female × 2″ NPS Female Easy-Seal - GF Polypropylene - CPP®

Connect an IBC tank with an S60X6 male outlet to a 2″ NPS female connection. This CPP® adaptor is suitable for dispensing water and other compatible liquids.

IBC compatibility

Fits standard S60X6 male IBC outlets, including SCHÜTZ S60X6 outlets. Suitable for selected WERIT, MAUSER, Mamor and Sotralentz tanks when fitted with a matching S60X6 male outlet and suitable sealing face.

Check the actual outlet before ordering, as connections vary between models and replacement valves.

What does Easy-Seal mean?

The NPS female connection comes complete with a sealing gasket. As the adaptor is tightened, the gasket compresses against the mating outlet’s sealing face to form the seal. The straight thread holds the connection together; the gasket provides the seal.

No thread-sealing tape or paste is needed on this NPS Easy-Seal connection when fitted to a matching outlet with a suitable sealing face. Conventional NPT threaded joints use tapered threads and normally require suitable sealing tape or compound.

Connections and materials

• IBC connection: S60X6 female buttress.
• Thread size: Nominal 60mm male outside diameter with 6mm pitch.
• Connection 2: 2″ NPS Female Easy-Seal, supplied with sealing gasket.
• Body material: Glass-filled polypropylene.
• Supplied: IBC seal.
• Product code: HFFM20UD027.

Thread specification

S60X6 buttress, manufactured to the applicable thread dimensions and tolerances of BS EN 12713.

NPS (National Pipe Straight) female connection. Check the mating thread and sealing arrangement; do not select by nominal size alone or confuse it with BSP.

Working pressure and testing

Maximum working pressure for IBC applications: 1 bar (approximately 15 psi) at 20°C.

Pressure testing: Tested to 60 psi (approximately 4.1 bar).

These pressures apply to the adaptor only. Follow the IBC tank and valve manufacturer’s operating limits; the adaptor rating does not authorise pressurising the IBC.

Installation Notes

1. Ensure the IBC outlet thread and sealing face are clean and undamaged, and the correct gasket is seated properly.
2. Hand-tighten the S60X6 female connection until the gasket sits firmly against the IBC valve outlet.
3. Using a suitable wrench or strap wrench, tighten a further 30° minimum to 60° maximum.
4. Fit the matching outlet connection using the appropriate sealing arrangement. Support hoses and pipework to reduce strain on the IBC valve.

Avoid overtightening, which can damage the threads, distort the gasket or cause leakage. Release pressure before disconnecting.

Installing the NPS connection

The 2″ NPS female side connects to a matching NPS male thread with a suitable sealing face. Check the gasket is correctly seated. Hand-tighten until the gasket contacts the mating face, then tighten a further 80° minimum to 160° maximum, using a suitable strap wrench where necessary. These instructions apply to the NPS connection; the S60X6 connection uses the separate 30°–60° instructions above.

Material and application guidance

Check the CPP® chemical resistance guide and Material Application Statement for suitability with your liquid and operating conditions.

Need help choosing the right fitting?

If you’re unsure about your IBC thread or connection, please contact us and we’ll help you select the correct adaptor. A clear photo of the outlet, together with any measurements, will help us identify what you need.
