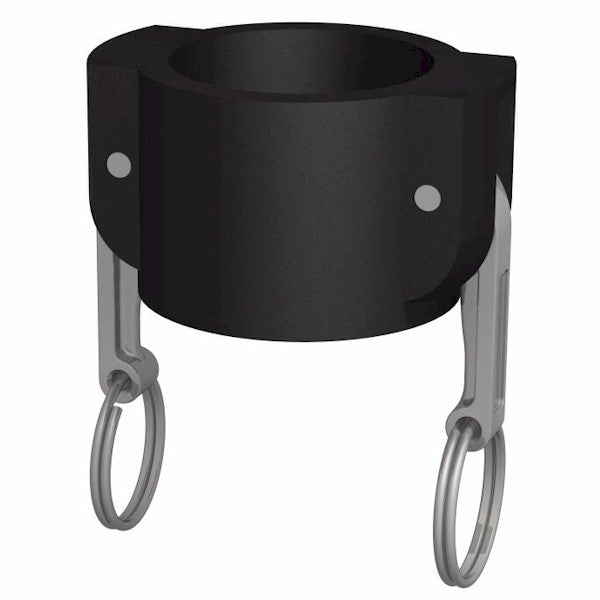

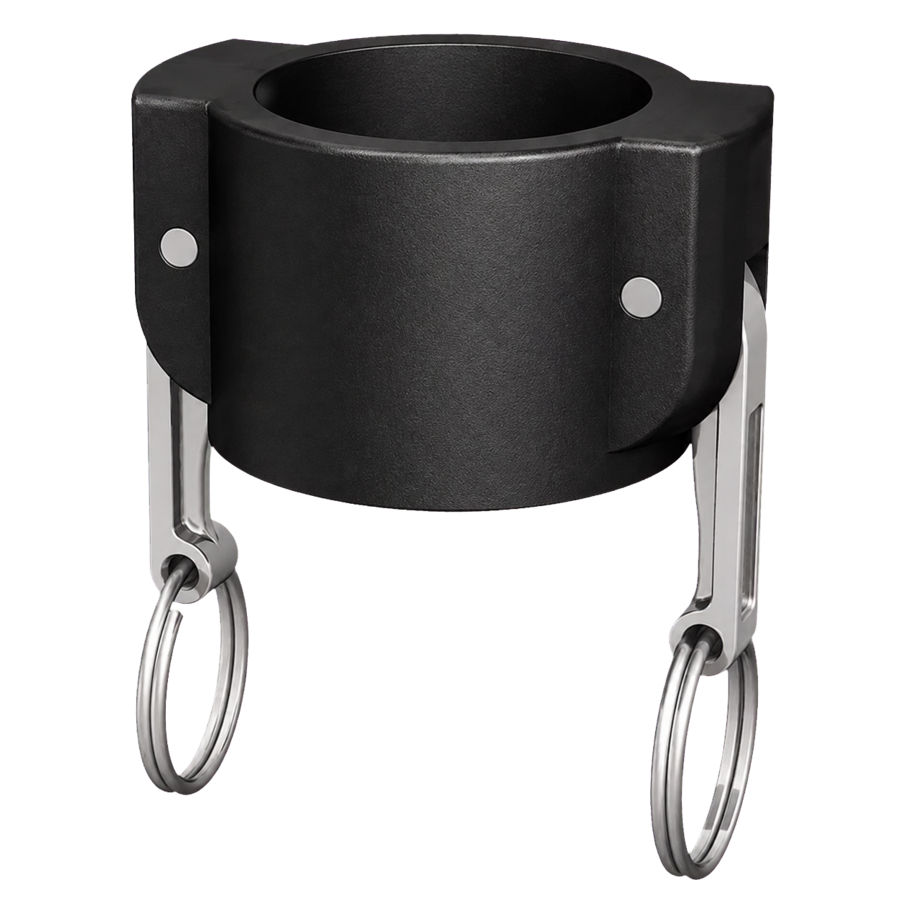

1½″ Female Camlock Dust Cap (Type DC) - GF Polypropylene - CPP®

This CPP® Type DC (Part DC) dust cap fits a matching 1½″ male Camlock adaptor. It covers the disconnected connection to help keep out dust and debris during storage or handling.

Manufactured from glass-filled polypropylene, the cap includes 304 stainless steel cam arms, rings and pins, together with a polypropylene-based elastomer sealing gasket. Closing both cam arms secures the mating adaptor against the gasket.

Specifications

• Camlock type: Type DC (Part DC)
• Camlock connection: 1½″ female.
• Function: Dust cap.
• Thread: None.
• Body material: Glass-filled polypropylene.
• Arms, rings and pins: 304 stainless steel.
• Camlock gasket: Polypropylene-based elastomer.
• SKU: CFH15C027.

Camlock compatibility: Fits matching 1½″ male Camlock heads manufactured to EN 14420-7 or US specification A-A-59326.

Choosing the correct size: Select by the 1½″ Camlock head size and check the mating dimensions in the size chart.

Use and handling

Use for dust protection on a depressurised connection. A dust cap or dust plug should not be used as a pressure-retaining closure. Release system pressure before removing it and check that the mating connection is clean and undamaged.
