Part E

CPP® Type E (Part E) Camlock adaptors combine a male Camlock connection with a hose tail for direct connection to flexible hose. The hose-tail size shown on each product is the nominal...
CPP® PRODUCT RANGE

Part E

CPP® Type E (Part E) Camlock adaptors combine a male Camlock connection with a hose tail for direct connection to flexible hose.

The hose-tail size shown on each product is the nominal hose internal diameter. Some reducer versions use a different Camlock head size and hose size, so check both dimensions before ordering.

Connection standards

  • Camlock: matching-size female Camlock couplers manufactured to EN 14420-7 or U.S. specification A-A-59326
  • Hose connection: barbed hose tail sized to the nominal hose bore shown on each product

Construction

  • Body: black glass-filled polypropylene (GFPP)
  • Cam arms and Camlock gasket: carried by the mating female Camlock coupler

Working pressure — water service

Camlock size −10°C 20°C 65°C
½″–2″ 5 bar / 73 psi 6.5 bar / 94 psi 3 bar / 44 psi
3″ 3 bar / 44 psi 5 bar / 73 psi 2 bar / 29 psi
4″ Not specified 3.5 bar / 51 psi Not specified

Pressure figures are for the CPP® Camlock fitting in water service. The complete hose assembly is limited by its lowest-rated component, including the hose and clamp. Check chemical compatibility and operating temperature for the intended liquid.

View the CPP® Camlock size chart for connection dimensions.

Technical product information Part numbers shown upfront B2B ordering

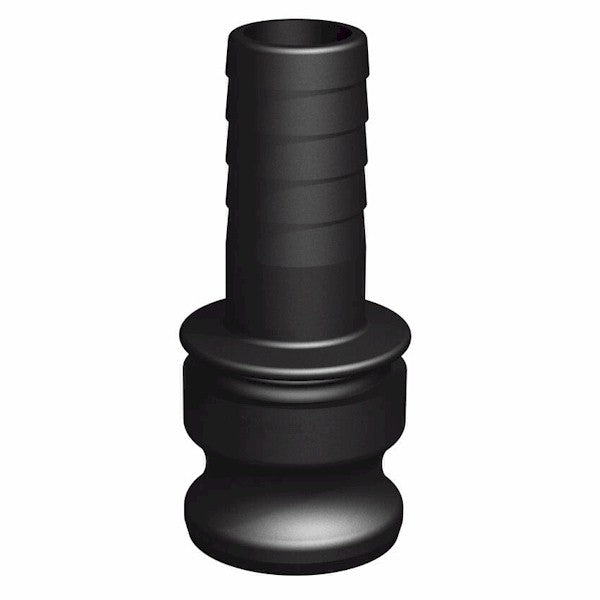

1½″ Male Camlock × 1¼″ (32 mm) Hose Tail (Type E) - GF Polypropylene - CPP®
