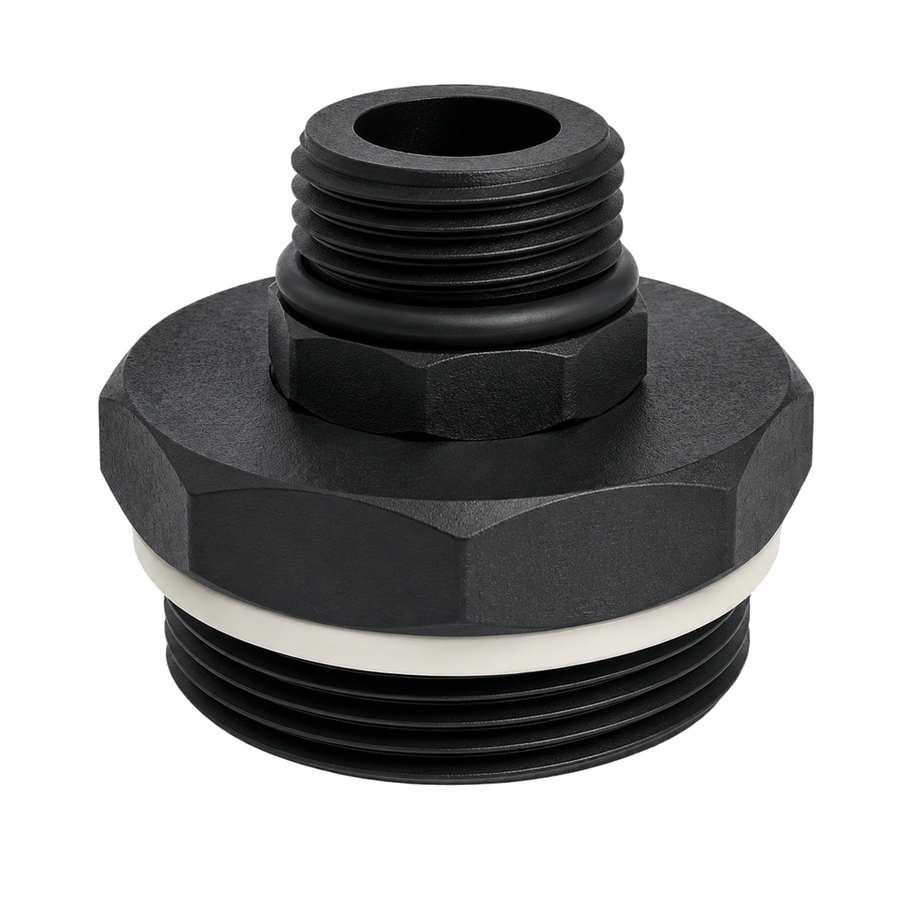

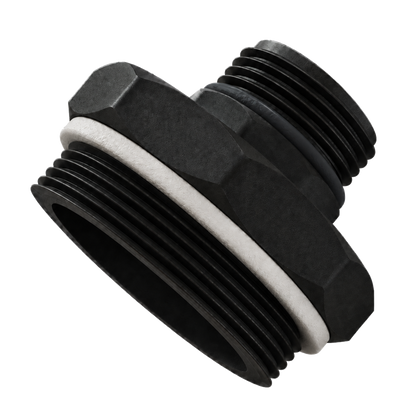

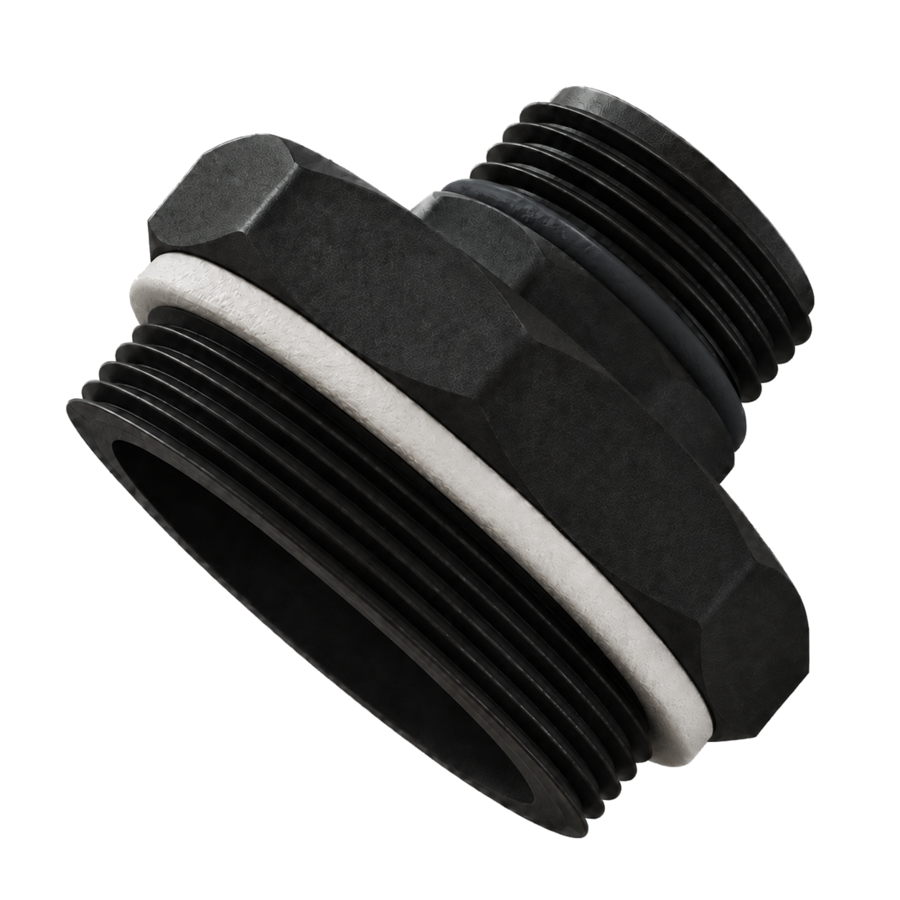

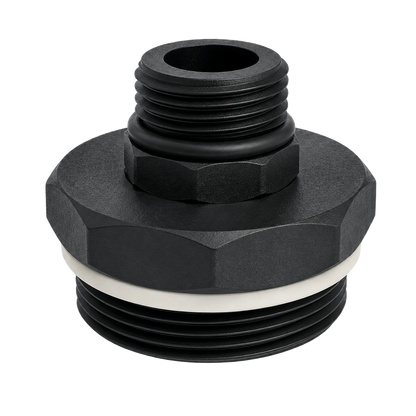

• CPP® BCS G2 × 11.5 (2″ BSP/NPS) Drum Thread × 1″ BSPP Short Male (O-ring Seal) in black glass-filled polypropylene – product view 2
  • CPP® BCS G2 × 11.5 (2″ BSP/NPS) Drum Thread × 1″ BSPP Short Male (O-ring Seal) in black glass-filled polypropylene – product view 1
1 2

BCS G2 × 11.5 (2″ BSP/NPS) Drum Thread × 1″ BSPP Short Male (O-ring Seal) – GF Polypropylene – CPP®

BCS G2 × 11.5 (2″ BSP/NPS) Drum Thread × 1″ BSPP Short Male (O-ring Seal) – GF Polypropylene – CPP®

DBMMPB20B10PB027

$11.50 USD
$0.00 USD $11.50 USD
Sale Awaiting stock
Shipping calculated at checkout.

In stock

CPP® BCS G2 × 11.5 drum adaptor for connecting compatible drums and barrels to a 1″ BSPP short male / O-ring connection.

The BCS G2 × 11.5 drum connection has been tested by CPP® and is compatible with suitable 2″ BSP/NPS drum openings.

Connection details

  • Drum connection: BCS G2 × 11.5 drum thread
  • Drum thread standard: ISO 20848-3 – BCS G2 × 11.5
  • Outlet connection: 1″ BSPP short male, G thread to ISO 228-1
  • O-ring material: PP Olefin Elastomer
  • Body material: black glass-filled polypropylene
  • Part number: DBMMPB20B10PB027

Working pressure and testing

Maximum working pressure for drum applications: 1 bar (approximately 15 psi) at 20°C.

Pressure testing: Tested to 60 psi (approximately 4.1 bar).

These pressures apply to the adaptor only. Follow the drum and closure manufacturer’s operating limits.
