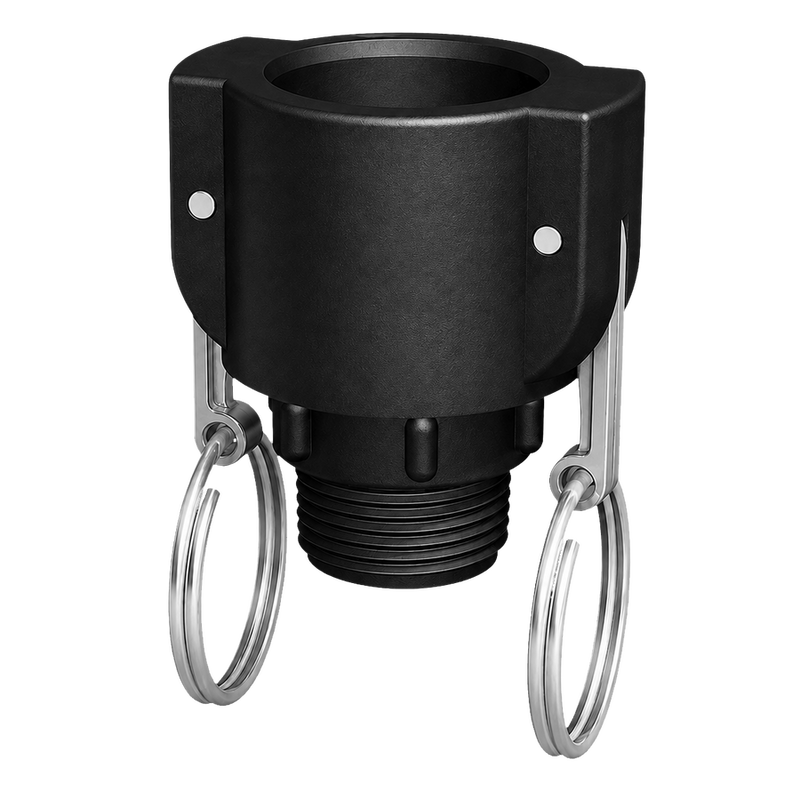

CPP® Type B (Part B) Camlock couplings combine a female Camlock connection with a male pipe thread for connecting hose systems to threaded equipment, valves and pipework.
In this collection, all BSP male threads are BSPT (tapered) and all NPT male threads are NPT (tapered).
Connection standards
-
Camlock: matching-size couplings manufactured to EN 14420-7 or U.S. specification A-A-59326
-
BSPT male: tapered external R thread to ISO 7-1
-
NPT male: tapered external pipe thread to ASME B1.20.1
Construction
-
Body: black glass-filled polypropylene (GFPP)
-
Cam arms, rings and pins: 304 stainless steel
-
Camlock gasket: PP Olefin Elastomer
Working pressure — water service
| Camlock size |
−10°C |
20°C |
65°C |
| ½″–2″ |
5 bar / 73 psi |
6.5 bar / 94 psi |
3 bar / 44 psi |
| 3″ |
3 bar / 44 psi |
5 bar / 73 psi |
2 bar / 29 psi |
| 4″ |
Not specified |
3.5 bar / 51 psi |
Not specified |
Pressure figures are for water service. The complete assembly is limited by its lowest-rated component, and chemical compatibility and temperature must be checked for the intended application.
Check both the Camlock head size and the male thread size before ordering, particularly on reducer versions where the two nominal sizes differ.
View the CPP® Camlock size chart for connection dimensions.
